Beskrivelse

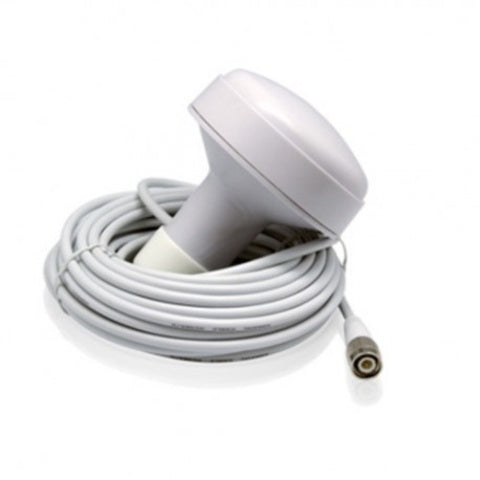

em-trak ET-GPS1 Antenne for AIS Transpondere / 304-0015.
Velegnet til alle AIS, GPS, Kortplottere og andre navigatorer, der bruger passiv GPS antenne med TNC stik
Kommer inkl. 10m antennekabel.
Key Features
GPS /QZSS/Galileo
- 1575-1606 MHz
Configurable Mount options
Screw/Pole/Adhesive Mount options
High Performance
Compact Marine antenna
Ground Plane Independent
Customizable Cable and Connector
Dimensions 130 × 110 × 74 mm Certificates: IP67
1. Antenna and electrical specifications
Frequencies GPS/GLONASS (1572 – 1610 MHz)
Impedance 50 Ohms
Polarization RHCP
LNA Gain 23dB at 3V and 24dB at 5V
VSWR
em-trak ET-GPS1 Antenne for AIS Transpondere / 304-0015
